Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R2902A ?

The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
Illuminated Push Button Switches R2902A

•  Pole-Position：Momentary Type,SPST With LED
•  Contact Rating：30VDC,0.1A
•  Contact Resistance：By Method of Voltage Drop
•  Insulation Resistance：
•  Dielectric Strength：500 VAC for 1 Minute
•  Operating Force：250±100gf
•  Operating Life：50,000 cycles
•  Operating Temperature Range：-40℃ ~ 85℃
•  Total Travel：1.2±0.3mm

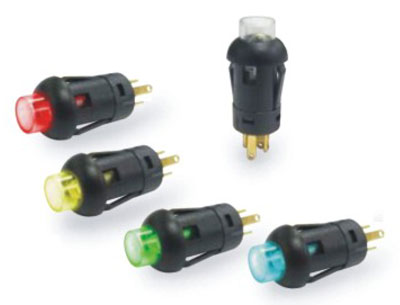

   Illuminated Push Button Switches R2902A Figure  Illuminated Push Button Switches R2902A Structure Diagram      Switch R2902A Structure Diagram      R2902A Structure Diagram



Part Number Pole-Position Contact Rating Contact Resistance Dielectric Strength Operating Force Operating Life Operating Temperature Range Total Travel Download
R2902A-XX-XX Momentary Type,SPST With LED 30VDC,0.1A By Method of Voltage Drop 500 VAC for 1 Minute 250±100gf 50,000 cycles -40℃ ~ 85℃ 1.2±0.3mm NULL
R2902A-K(Non-LED) Momentary Type,SPST With LED 30VDC,0.1A By Method of Voltage Drop 500 VAC for 1 Minute 250±100gf 50,000 cycles -40℃ ~ 85℃ 1.2±0.3mm NULL
